远程服务器端
# 部署frps服务端
## 官方文档
[frp 是什么](https://gofrp.org/zh-cn/docs/overview/)
## 实现条件
需要有公网IP的云服务器
## frp版本
查看[frp版本发布](https://github.com/fatedier/frp/releases)，获取最新版本
> frp 采用 Go 语言编写，支持跨平台，只需下载适用于您平台的二进制文件即可执行，无需额外依赖。
## 下载Linux系统下的服务器版本frps
服务器系统是CentOS
这里下载frp的linux_amd64版本
注意修改下面的版本号和文件名
2023年10月版本：
自v0.52版本开始，配置文件为tomal格式。后续不再支持ini格式
```js
wget https://github.com/fatedier/frp/releases/download/v0.52.1/frp_0.52.1_linux_amd64.tar.gz
```
此版本配置文件为ini格式
```js
wget https://github.com/fatedier/frp/releases/download/v0.51.3/frp_0.51.3_linux_amd64.tar.gz
```
早期版本：
```js
wget https://github.com/fatedier/frp/releases/download/v0.34.3/frp_0.34.3_linux_amd64.tar.gz
```
如果下载时提示`Unable to establish SSL connection.`，是因为无法建立下载链接。多试几次就可以了。
# 安装frps
创建目录
```language
mkdir frp
```
解压文件
```language
tar -zxvf frp_0.34.3_linux_amd64.tar.gz -C /root/frp/
```
进入frp目录（可选）
```language
cd frp/frp_0.34.3_linux_amd64/
```
# 配置frps
修改宝塔“/root/frp/”目录下的“frps.ini”配置文件(可在SSH里修改，也可手动进入目录修改)
>w 注意修改`vhostHTTPPort`的值。默认是80，要改为其他值。
因为服务器的80端口，已经被其他服务占用，是无法启动frps的
```ini
[common]
#服务器端监听的端口，默认是7000，可自定义
bind_port = 7000
vhost_http_port = 7600
token = password2020
dashboard_port = 7500
dashboard_user = admin
dashboard_pwd = zhaoxuan
```
v0.5.2以后的配置文件是“frps.toml”，而不是“frps.ini”
```toml
# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single "bind_addr" field, no need square brackets, like "bind_addr = ::".
# 服务端监听地址，默认0.0.0.0
bindAddr = "0.0.0.0"
# 服务端监听端口，默认7000
bindPort = 7000
# udp port used for kcp protocol, it can be same with 'bind_port'.
# if not set, kcp is disabled in frps.
# 服务端监听 KCP 协议端口，默认0
kcpBindPort = 7000
# udp port used for quic protocol.
# if not set, quic is disabled in frps.
# 服务端监听 QUIC 协议端口
# quicBindPort = 7002
# Specify which address proxy will listen for, default value is same with bind_addr
# proxy_bind_addr = "127.0.0.1"
# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000
# Heartbeat configure, it's not recommended to modify the default value
# The default value of heartbeat_timeout is 90. Set negative value to disable it.
# transport.heartbeatTimeout = 90
# Pool count in each proxy will keep no more than maxPoolCount.
# 最大连接池大小
transport.maxPoolCount = 5
# If tcp stream multiplexing is used, default is true
# transport.tcpMux = true
# Specify keep alive interval for tcp mux.
# only valid if tcpMux is true.
# transport.tcpMuxKeepaliveInterval = 60
# tcpKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.tcpKeepalive = 7200
# transport.tls.force specifies whether to only accept TLS-encrypted connections. By default, the value is false.
tls.force = false
# transport.tls.certFile = "server.crt"
# transport.tls.keyFile = "server.key"
# transport.tls.trustedCaFile = "ca.crt"
# If you want to support virtual host, you must set the http port for listening (optional)
# Note: http port and https port can be same with bind_port
# HTTP 类型代理监听的端口
vhostHTTPPort = 7600
# HTTPS 类型代理监听的端口
vhostHTTPSPort = 443
# Response header timeout(seconds) for vhost http server, default is 60s
# vhostHTTPTimeout = 60
# tcpmuxHTTPConnectPort specifies the port that the server listens for TCP
# HTTP CONNECT requests. If the value is 0, the server will not multiplex TCP
# requests on one single port. If it's not - it will listen on this value for
# HTTP CONNECT requests. By default, this value is 0.
# tcpmuxHTTPConnectPort = 1337
# If tcpmux_passthrough is true, frps won't do any update on traffic.
# tcpmuxPassthrough = false
# Configure the web server to enable the dashboard for frps.
# dashboard is available only if webServer.port is set.
# 启用 Dashboard 监听的配置
webServer.addr = "127.0.0.1"
webServer.port = 7500
webServer.user = "admin"
webServer.password = "admin"
# webServer.tls.certFile = "server.crt"
# webServer.tls.keyFile = "server.key"
# dashboard assets directory(only for debug mode)
# webServer.assetsDir = "./static"
# Enable golang pprof handlers in dashboard listener.
# Dashboard port must be set first
# 启动 Go HTTP pprof
webServer.pprofEnable = false
# enablePrometheus will export prometheus metrics on webServer in /metrics api.
# 是否提供 Prometheus 监控接口
enablePrometheus = true
# console or real logFile path like ./frps.log
# 日志文件地址
log.to = "./frps.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false
# DetailedErrorsToClient defines whether to send the specific error (with debug info) to frpc. By default, this value is true.
detailedErrorsToClient = true
# auth.method specifies what authentication method to use authenticate frpc with frps.
# If "token" is specified - token will be read into login message.
# If "oidc" is specified - OIDC (Open ID Connect) token will be issued using OIDC settings. By default, this value is "token".
auth.method = "token"
# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]
# auth token
# 鉴权使用的 token 值
auth.token = "12345678"
# oidc issuer specifies the issuer to verify OIDC tokens with.
auth.oidc.issuer = ""
# oidc audience specifies the audience OIDC tokens should contain when validated.
auth.oidc.audience = ""
# oidc skipExpiryCheck specifies whether to skip checking if the OIDC token is expired.
auth.oidc.skipExpiryCheck = false
# oidc skipIssuerCheck specifies whether to skip checking if the OIDC token's issuer claim matches the issuer specified in OidcIssuer.
auth.oidc.skipIssuerCheck = false
# userConnTimeout specifies the maximum time to wait for a work connection.
# userConnTimeout = 10
# Only allow frpc to bind ports you list. By default, there won't be any limit.
allowPorts = [
{ start = 2000, end = 3000 },
{ single = 3001 },
{ single = 3003 },
{ start = 4000, end = 50000 }
]
# Max ports can be used for each client, default value is 0 means no limit
maxPortsPerClient = 0
# If subDomainHost is not empty, you can set subdomain when type is http or https in frpc's configure file
# When subdomain is est, the host used by routing is test.frps.com
subDomainHost = "frps.com"
# custom 404 page for HTTP requests
# custom404Page = "/path/to/404.html"
# specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500
# Retention time for NAT hole punching strategy data.
natholeAnalysisDataReserveHours = 168
[[httpPlugins]]
name = "user-manager"
addr = "127.0.0.1:9000"
path = "/handler"
ops = ["Login"]
[[httpPlugins]]
name = "port-manager"
addr = "127.0.0.1:9001"
path = "/handler"
ops = ["NewProxy"]
```
## 启动frps
根据配置文件的不同，用不同的命令启动服务器。
使用以下命令启动v0.5.2以后的服务器：
```
./frps -c ./frps.toml
```
使用以下命令启动v0.5.2以前的服务器：
```language
./frps -c ./frps.ini
```
提示下列内容，说明开启成功
```language
2021/01/11 16:33:50 [I] [service.go:190] frps tcp listen on 0.0.0.0:7000
2021/01/11 16:33:50 [I] [root.go:215] start frps success
```
完整的运行日志
```cmd
[root@VM-0-7-centos ~]# tar -zxvf frp_0.34.3_linux_amd64.tar.gz -C /root/frp/
frp_0.34.3_linux_amd64/
frp_0.34.3_linux_amd64/frps
frp_0.34.3_linux_amd64/frps.ini
frp_0.34.3_linux_amd64/LICENSE
frp_0.34.3_linux_amd64/frpc.ini
frp_0.34.3_linux_amd64/frps_full.ini
frp_0.34.3_linux_amd64/frpc_full.ini
frp_0.34.3_linux_amd64/systemd/
frp_0.34.3_linux_amd64/systemd/frps@.service
frp_0.34.3_linux_amd64/systemd/frpc@.service
frp_0.34.3_linux_amd64/systemd/frpc.service
frp_0.34.3_linux_amd64/systemd/frps.service
frp_0.34.3_linux_amd64/frpc
[root@VM-0-7-centos ~]# cd frp/frp_0.34.3_linux_amd64/
[root@VM-0-7-centos frp_0.34.3_linux_amd64]# ./frps -c ./frps.ini
2023/10/22 17:50:45 [I] [service.go:190] frps tcp listen on 0.0.0.0:7000
2023/10/22 17:50:45 [I] [service.go:232] http service listen on 0.0.0.0:7600
2023/10/22 17:50:45 [I] [service.go:289] Dashboard listen on 0.0.0.0:7500
2023/10/22 17:50:45 [I] [root.go:215] start frps success
```
提示下列内容，说明端口被占用
```
create vhost http listener error, listen tcp 0.0.0.0:80: bind: address already in use
```
## 在ssh客户端编辑frps.ini文件的方法：
进入frp目录
```language
cd frp/frp_0.34.3_linux_amd64/
```
输入命令：
```js
vi frps.ini
```
按键盘上的i，进入编辑状态。
按esc，退出编辑状态。
在左下角点一下，输入“:wq”，按回车，即可退出编辑进入命令行。
## 配置ECS安全组规则
腾讯云开放指定端口

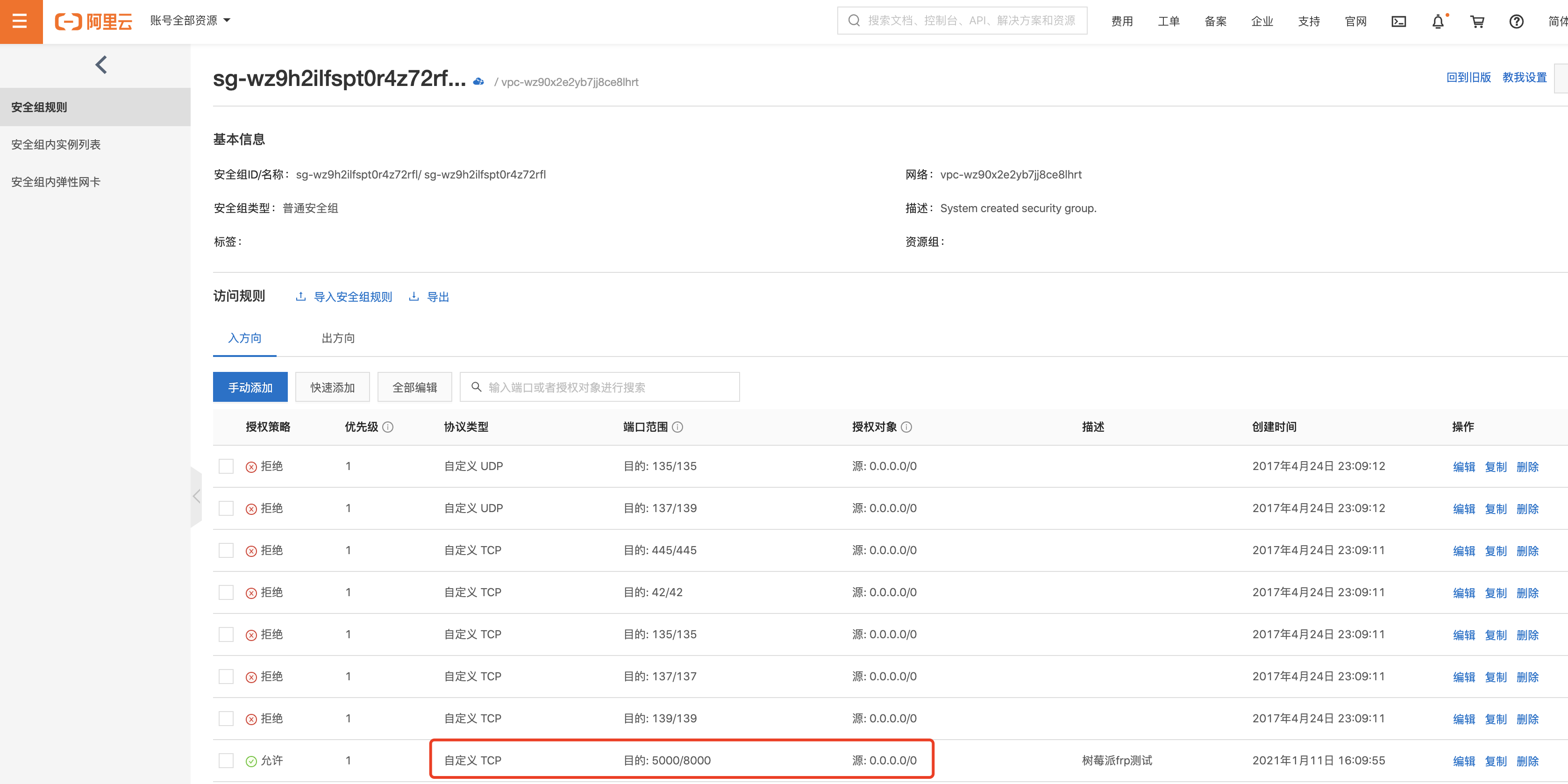

阿里云开放指定端口
## 放行宝塔端口
在宝塔的安全面板，放行配置中的3个端口：
## 验证服务
在SSH命令行窗口开启的情况下
访问`服务器域名+dashboard端口`
出现登录页面，能使用配置中的账号和密码登录，说明frps服务已正常开启
> 关闭SSH窗口，frps服务则会立即关闭。
# 使用systemctl来控制frp的启动
参考教程：[systemctl教程](https://www.cnblogs.com/chenshy/p/13514248.html)
## 服务端配置
配置文件的目录，位于`/usr/lib/systemd/system`
```js
sudo vi /lib/systemd/system/frps.service
```
输入以下内容，注意修改文件的路径
```js
[Unit]
Description=fraps service
After=network.target network-online.target syslog.target
Wants=network.target network-online.target
[Service]
Type=simple
#启动服务的命令（此处写你的frps的实际安装目录）
ExecStart=/root/frp/frp_0.34.3_linux_amd64/frps -c /root/frp/frp_0.34.3_linux_amd64/frps.ini
[Install]
WantedBy=multi-user.target
```
### 重载配置文件
sudo systemctl daemon-reload
### 启动frps
sudo systemctl start frps
### 打开自启动
sudo systemctl enable frps
### 重启应用
sudo systemctl restart frps
### 停止应用
sudo systemctl stop frps
### 查看应用的日志
sudo systemctl status frps
### 停止开机自启动
systemctl disable frps
## 查看frp线程
ps -aux | grep frp
完整的运行日志：
```cmd
[root@VM-0-7-centos ~]# sudo systemctl daemon-reload
[root@VM-0-7-centos ~]# sudo systemctl start frps
[root@VM-0-7-centos ~]# sudo systemctl enable frps
Created symlink from /etc/systemd/system/multi-user.target.wants/frps.service to /usr/lib/systemd/system/frps.service.
[root@VM-0-7-centos ~]# sudo systemctl restart frps
[root@VM-0-7-centos ~]# sudo systemctl status frps
● frps.service - fraps service
Loaded: loaded (/usr/lib/systemd/system/frps.service; enabled; vendor preset: disabled)
Active: active (running) since Sun 2023-10-22 18:04:11 CST; 15s ago
Main PID: 28636 (frps)
CGroup: /system.slice/frps.service
└─28636 /root/frp/frp_0.34.3_linux_amd64/frps -c /root/frp/frp_0.34.3_linux_amd64/frps.ini
Oct 22 18:04:11 VM-0-7-centos systemd[1]: Started fraps service.
Oct 22 18:04:11 VM-0-7-centos frps[28636]: 2023/10/22 18:04:11 [I] [service.go:190] frps tcp listen on 0.0.0.0:7000
Oct 22 18:04:11 VM-0-7-centos frps[28636]: 2023/10/22 18:04:11 [I] [service.go:232] http service listen on 0.0.0.0:7600
Oct 22 18:04:11 VM-0-7-centos frps[28636]: 2023/10/22 18:04:11 [I] [service.go:289] Dashboard listen on 0.0.0.0:7500
Oct 22 18:04:11 VM-0-7-centos frps[28636]: 2023/10/22 18:04:11 [I] [root.go:215] start frps success
Oct 22 18:04:18 VM-0-7-centos frps[28636]: 2023/10/22 18:04:18 [I] [dashboard_api.go:65] Http request: [/api/serverinfo]
Oct 22 18:04:18 VM-0-7-centos frps[28636]: 2023/10/22 18:04:18 [I] [dashboard_api.go:58] Http response [/api/serverinfo]: code [200]
[root@VM-0-7-centos ~]# ps -aux | grep frp
root 28636 0.2 0.2 717300 18372 ? Ssl 18:04 0:00 /root/frp/frp_0.34.3_linux_amd64/frps -c /root/frp/frp_0.34.3_linux_amd64/frps.ini
root 29071 0.0 0.0 9092 672 pts/0 S+ 18:04 0:00 grep frp
[root@VM-0-7-centos ~]#
```
# 其他内网穿透工具
https://natapp.cn/
